Eine einfache Visualisierungslösung für Teradata/T-SQL Queries

WITH cte_category_counts (
    category_id,
    category_name,
    product_count
)
AS (
    SELECT
        c.category_id,
        c.category_name,
        COUNT(p.product_id)
    FROM
        production.products p
        INNER JOIN production.categories c
            ON c.category_id = p.category_id
    GROUP BY
        c.category_id,
        c.category_name
),
cte_category_sales(category_id, sales) AS (
    SELECT
        p.category_id,
        SUM(i.quantity * i.list_price * (1 - i.discount))
    FROM
        sales.order_items i
        INNER JOIN production.products p
            ON p.product_id = i.product_id
        INNER JOIN sales.orders o
            ON o.order_id = i.order_id
    WHERE order_status = 4 -- completed
    GROUP BY
        p.category_id
)
INSERT INTO categories (category_id, category_name, product_count,sales)
SELECT
    c.category_id,
    c.category_name,
    c.product_count,
    s.sales
FROM
    cte_category_counts c
    INNER JOIN cte_category_sales s
        ON s.category_id = c.category_id
ORDER BY
    c.category_name;



WITH cte_business_division_counts (division_id, counts) AS (
    SELECT
        d.division_id,
        SUM(c.counts)
    FROM
        categories c
        INNER JOIN organization.divisions d
            ON c.category_id = d.category_id
    GROUP BY
        d.division_id
)
cte_business_division_sales (division_id, division_name, sales) AS (
    SELECT
        d.division_id,
        d.division_name,
        SUM(c.sales)
    FROM
        categories c
        INNER JOIN organization.divisions d
            ON c.category_id = d.category_id
    GROUP BY
        d.division_id
)
INSERT INTO business_divisions (division_id, division_name, product_count,sales)
SELECT
    s.division_id,
    s.division_name,
    s.sales,
    c.counts
FROM
    cte_business_division_counts c
    INNER JOIN cte_business_division_sales s
        ON s.division_id = c.division_id
ORDER BY
    c.division_name;

import re
import os
from collections import Counter
from graphviz import Digraph
import networkx as nx
# can be used to generate JSON format of graph
# from networkx.readwrite import json_graph

basedir = '.'

filenames = ['test.sql']

with_deletes = False

dot = Digraph(comment='Structure', engine='dot', strict=True)

G = nx.Graph()

# graphically highlight tables and their incoming connections
highlight_nodes = []

# do not draw these
ignore_list = []

# collect all nodes here
complete_list = []

for filename in filenames:
    f = open(os.path.join(basedir, filename))
    f_string = f.read()
    sep = ';'
    f_list = [x+sep for x in f_string.split(sep)]
    f_list = [x.replace("\n", " ") for x in f_list]
    f_list = [x for x in f_list if x.strip() != "COMMIT;"]
    complete_list += f_list


# define regular expressions for SQL statements
re_create = re.compile(
    r"CREATE\s+(?:MULTISET)?\s+TABLE\s+([a-zA-Z0-9_\.]+)\s*,",
    re.MULTILINE | re.IGNORECASE)
re_insert = re.compile(
    r"INSERT\s+INTO\s+([a-zA-Z0-9_\.]+)\s*\(", re.MULTILINE | re.IGNORECASE)
re_from = re.compile(
    r"(?<!DELETE)\s+FROM\s+([a-zA-Z0-9_\.]+)[;\s]+", re.S | re.I)
re_cte = re.compile(
    r"(?:WITH)?\s+([A-Za-z0-9_]+)\s+AS\s?\(", re.MULTILINE | re.IGNORECASE)
re_join = re.compile(
    r"JOIN\s+([A-Za-z0-9_\.]+)\s", re.MULTILINE | re.IGNORECASE)
re_update = re.compile(
    r"UPDATE\s([\w])+\sSET\s[\w\,\'\=_]+", re.MULTILINE | re.IGNORECASE)
re_delete = re.compile(
    r"DELETE\sFROM\s([\d\w\.\'\=_]+.*;)", re.S | re.IGNORECASE)

node_list = []
delete_nodes = []
create_nodes = []

# go through all statements and check if they match a regex
for i, statement in enumerate(complete_list):
    statement = statement.replace("\n", " ")

    to_nodes = []
    from_nodes = []

    for match in re.findall(re_create, statement):
        create_nodes.append(match)

    for match in re.findall(re_delete, statement):
        delete_nodes.append(match)

    for match in set(re.findall(re_insert, statement)):
        to_nodes.append(str.lower(match))

    for match in set(re.findall(re_update, statement)):
        print(match)

    for match, count in Counter(re.findall(re_cte, statement)).items():
        print("%s : %i" % (match, count))

    for match, count in Counter(re.findall(re_from, statement)).items():
        if match not in re.findall(re_cte, statement):
            from_nodes.append(str.lower(match))

    # print(5*'-' + 'Joins (CTEs removed)' + 5*'-')
    for match, count in Counter(re.findall(re_join, statement)).items():
        if match not in re.findall(re_cte, f_string):
            # print("%s : %i" % (match,count))
            from_nodes.append(str.lower(match))

    from_nodes = [x for x in from_nodes if x not in ignore_list]
    to_nodes = [x for x in to_nodes if x not in ignore_list]

    for to_node in to_nodes:
    	# for every node switch between picking colors from the "left" and "right" end
    	# the spectrum so similar colors do not appear next to each other
        if i % 2 == 0:
            edge_color = str(round(i/float(len(complete_list)), 2))+" 1.0 " +\
               str(round(i/float(len(complete_list)), 2))
        else:
            edge_color = str(round((len(complete_list)-i)/float(len(complete_list)), 2))\
                 + " 1.0 " + str(round((len(complete_list)-i)/float(len(complete_list)), 2))

        if to_node in highlight_nodes:
            dot.node(to_node, color=edge_color, style='filled',
                     fillcolor=edge_color)
        else:
            dot.node(to_node, color=edge_color)

        for from_node in from_nodes:
            dot.node(from_node, shape='box')
            if (to_node in highlight_nodes) or (from_node in highlight_nodes):
                dot.edge(from_node, to_node, color=edge_color, penwidth='3')
            else:
                dot.edge(from_node, to_node, color=edge_color)

# graphically represent deletes within the query
if with_deletes:
    delete_nodes = [str.lower(del_node) for del_node in delete_nodes]
    delete_label = '<<B>DELETES</B><br/>' + '<br/>'.join(delete_nodes) + '>'
    dot.node('DELETES', label=delete_label, shape='box')

# print(5*'-' + 'All participating Tables' + 5*'-')
# for match in set(re.findall(re_from,f_string)+re.findall(re_insert,f_string)+re.findall(re_join,f_string)):
#    if match not in re.findall(re_cte,f_string):
#        print (match)

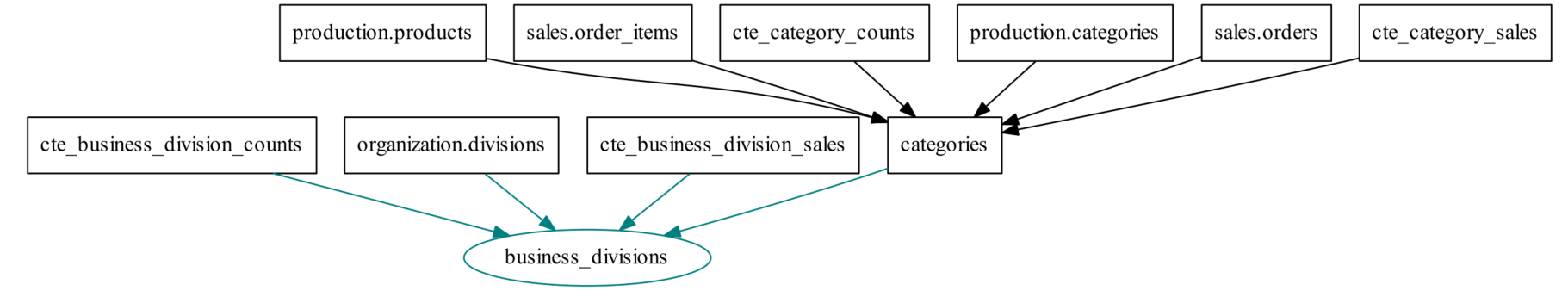

dot.render('output/'+filename.replace('.', '_')+'.gv', view=True)

# print(dot.source)
# dot_graph = G.read_dot()
# print (json_graph.dumps(dot_graph))
